25Gbps850nm SFP28 100m w/o FEC or 300m with FEC Optical Transceiver (FTCS-8525G-02DI)
Description
Description
The F-tone Networks FTCS-8525G-02DI is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25.78125 Gigabit Ethernet SFP28 SR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 70 m using OM3 fiber and 100 m using OM4 fiber without FEC or 300m OM4 with KR-FEC. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates F-tone Networks proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Features
● Hot-pluggable SFP28 form factor
● Supports 25.78125Gbps data rate
● Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF w/o FEC or 300m OM4 MMF with FEC
● 850nm VCSEL laser and PIN photo-detector
● Internal CDR on both Transmitter and Receiver channel
● Duplex LC receptacle
● Single 3.3V power supply
● Power dissipation < 1W
● Digital diagnostics functions are available via the I2C interface
● RoHS 2.0 compliant
● Case temperature range: -40°C to 85°C
Applications
● 25GBASE-SR 25G Ethernet

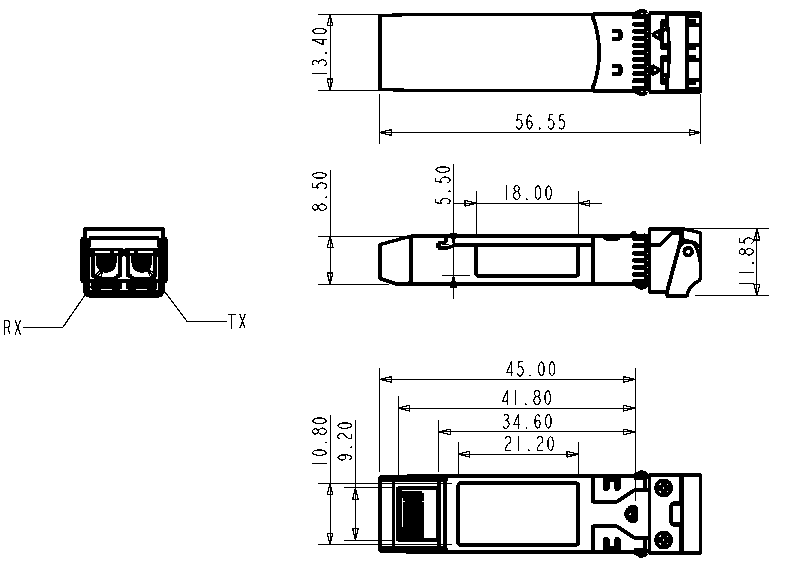

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCS-8525G-02DI |
SFP28 SR, 25.78125Gb/s, 850nm, 100m, OM4 MMF w/o FEC or 300m OM4 MMF with FEC, -40℃ to -85℃ |
本产品为25G~400G高速光 ？橄盗，如有需要，请联系公海彩船 。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
