3.3V 1.25Gbps 1X10 MiniSFF Transceiver

3.3V 1.25Gbps 1X10 MiniSFF Transceiver

0.0/5 rating (0 votes)

Description

3.3V 1.25Gbps 1X10 MiniSFF Transceiver

FEATURES
● Surface mount I/O pins for high speed signal integrity
● All metal body, screw mounting
● Industrial Temp Range, Vibration tolerant design
● 850nm VCSEL Transmitter
● 300 m links with 62.5/125 mm MMF Cables
● 500 m links with 50/125 mm MMF Cables
● Single 3.3V Power Supply
● 2-Fiber MiniSFF LC Transceiver
● Operating Temperature
       Standard : 0℃~+70℃ (FTMF-8512-02)
       Industrial: -40℃~+85℃ (FTMF-8512-02I)

APPLICATIONS
● SONET/SDH Equipment Interconnect
● Fiber Channel Links

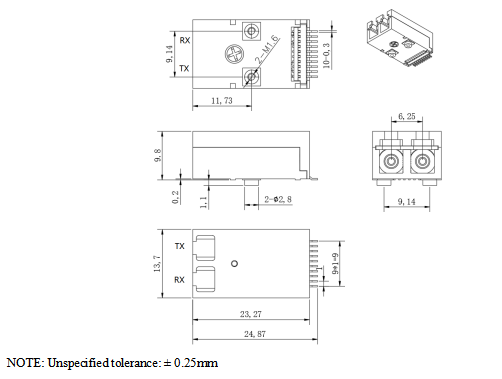

Outline Specification

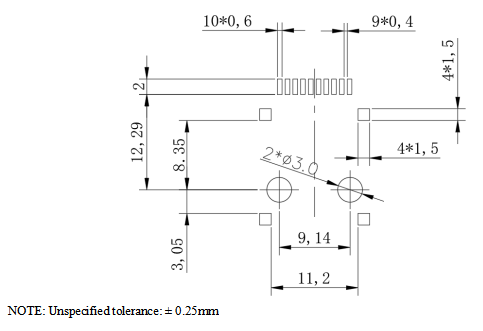

FT 95 2Recommended PCB Layout

FT 95 2Ordering Information

P/No.

Package



Bit Rate

(Gb/s)

Dist.

(m)

Wavelength

(nm)

Volt.

(V)

TX

Power

(dBm)

RX

Sens

(dBm)

Temp.

(℃)

FTMF-8512-02

LC

1.25

500

850

3.3

-9~-3

-17

0~70

FTMF-8512-02I

LC

1.25

500

850

3.3

-9~-3

-17

-40~85













注：本产品有全国产化型号可选

本产品为FTMF系列，仅展示部分参数，如有需要，请联系公海彩船。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
