产品简介
FT-50-HFL821光端机是一款支持Base Mediuull事情模式的全功效型的 Cameralink光端机。切合Ca-meraLink2.0标准规范,可配置在高性能的数码相机和图像收罗器上,用来延长 CameraLink20接口的传输距离。适用于种种工业监控、交通控制军用高清图像传输等应用场景。 CameraLink光端机由一台发射光端机和一台接收光端机组成,需两台产品配对使用。该产品支持1路Base模式+1路Full模式 CameraLink视频,可以做到视频信号的实时、无压缩的光纤远距离传输。具有超小体积、超轻重量、功耗低、装置便当、操作简单、维修便当、可靠性高等特点。

产品特性

● 宽带10G，支持单纤双向光纤传输，最远传输距离80km；
● 支持 CameraLink2.0协议兼容 CameraLink1.0协议；
● 支持1路Base模式+1路Full模式 Camera Link视频；
● 支持像素时钟20MHZ~85MHz；
● 支持无延时无压缩像素到像素传输；
● 支持即插即用，无需配置；
● 支持 SerIc StrTFG,CC1-CC4传输；

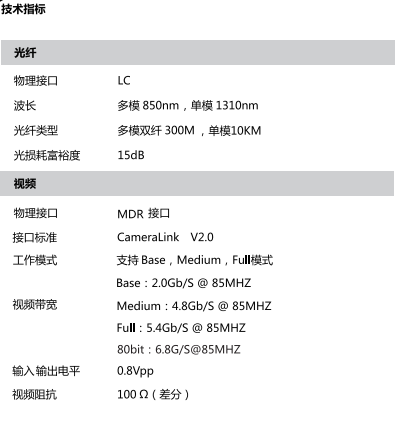

详细信息

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
